Closed Charts: [Line Chart] Stacked series are stacked and rendered wrong if series don't share same x coordinate
  • View options
  • Charts: [Line Chart] Stacked series are stacked and rendered wrong if series don't share same x coordinate

  • View options
  • Closed Issue created by Administrator

    Created by: vovakulikov

    In case when series are not aligned between each other (grouped) by x-axis values, we have unaligned and wrong stacked series on the chart.

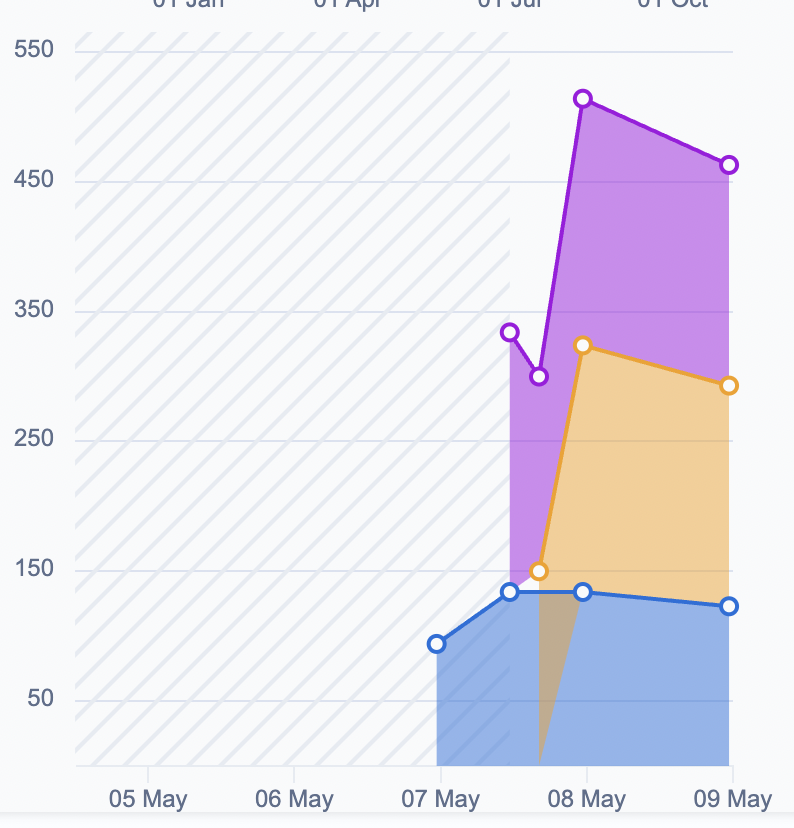

    Screenshot 2022-04-04 at 14 56 38

    Mock data from the picture

     const DATA_WITH_STEP: DatumWithMissingData[] = [
            { x: 1588965700286 - 4 * 24 * 60 * 60 * 1000, a: null, b: null, c: null },
            { x: 1588965700286 - 3 * 24 * 60 * 60 * 1000, a: null, b: null, c: null },
            { x: 1588965700286 - 2 * 24 * 60 * 60 * 1000, a: 94, b: null, c: null },
            { x: 1588965700286 - 1.5 * 24 * 60 * 60 * 1000, a: 134, b: null, c: 200 },
            { x: 1588965700286 - 1.4 * 24 * 60 * 60 * 1000, a: null, b: 150, c: null },
            { x: 1588965700286 - 1.3 * 24 * 60 * 60 * 1000, a: null, b: 150, c: 150 },
            { x: 1588965700286 - 24 * 60 * 60 * 1000, a: 134, b: 190, c: 190 },
            { x: 1588965700286, a: 123, b: 170, c: 170 },
            { x: 1588965700286 + 24 * 60 * 60 * 1000, a: null, b: 200, c: null },
            { x: 1588965700286 + 1.3 * 24 * 60 * 60 * 1000, a: null, b: 180, c: null },
        ]
